DSP for Cortex-M

Digital signal processing with all the benefits of developing on an MCU and the use-of-use of Cortex-M


Arm’s Digital Signal Controllers, the Cortex-M4, Cortex-M7, Cortex-M33 and Cortex-M35P processors, address the need for high-performance generic code processing, as well as digital signal processing applications.

The addition of DSP extensions to the Thumb instruction set and the optional floating-point unit (FPU), are designed to improve the performance of numerical algorithms. In addition, they provide the opportunity to perform signal processing operations directly on the Cortex-M4, Cortex-M7, Cortex-M33 and Cortex-M35P processors, while maintaining the ease of use of the Cortex-M programmer’s model.

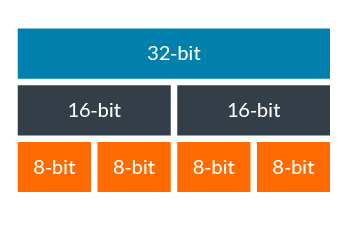

Breaking down 32-bit Diagram.

DSP and SIMD instructions

The Cortex-M4, Cortex-M7, Cortex-M33 and Cortex-M35P processors provide SIMD instructions that operate on 8-or 16-bit integers. All registers are still 32-bits wide, but the SIMD instructions operate on 2 x 16-bit values or 4 x 8-bit values at the same time within a 32-bit register.

Instructions that work on 8- or 16-bit data types are useful for processing data such as video or audio, as they do not require full 32-bit precision. The SIMD instructions allow these 2x16-bit or4x8-bit operations to be performed in parallel.


The CMSIS-DSP library is a suite of common signal processing and mathematical functions that have been optimized for Cortex-M4, Cortex-M7, Cortex-M33 and Cortex-M35P processors. The library is freely available as part of the CMSIS release from Arm and includes all source code.

The functions in the library are divided into several categories:

  1. Basic math functions, such as Vector Dot Product, Vector Multiply, Vector Addition
  2. Fast math functions, such as Square Root, Sine and Cosine
  3. Complex math functions, such as Complex Dot Product, Complex-by-real Multiplication
  4. Filters, such as FIR, IIR, Biquad and Convolution
  5. Matrix functions, such as Matrix Multiplication, Complex Matrix Multiplication
  6. Transforms, such as Complex FFT functions
  7. Motor control functions, including Vector Clarke Transform, Vector Park Transform, PID Motor Control
  8. Statistical functions, including Root Mean Square (RMS), Standard deviation, Maximum and Power
  9. Support functions, e.g. conversion of datatypes from float to fixed point
  10. Interpolation functions.

Arm's DSP ecosystem partners also provide a broad range of software libraries, including servo motor control, Voice over IP (VOIP) and video & audio codecs. Learn more about DSP ecosystem partners here.
