Cortex-A15

The Cortex-A15 is a high-performance processor that implements the Armv7-A architecture.

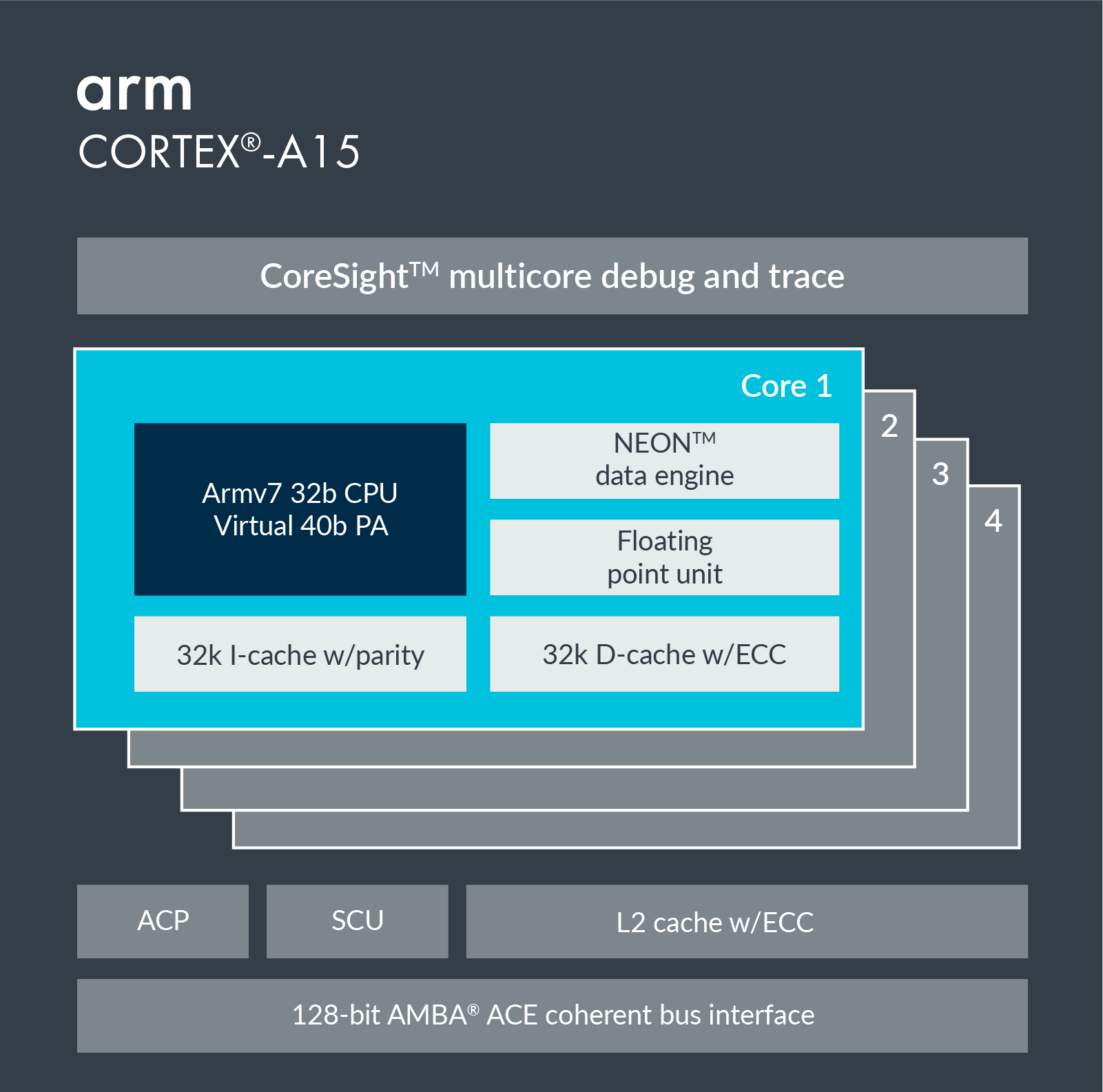

Information on Cortex-A15.

Getting Started

The Cortex-A15 has enjoyed proven success, with shipments in excess of 50 million units across a variety of smartphones and infrastructure applications. The processor cluster has one to four cores. Each core has its own L1 instruction and data caches, together with a single shared L2 unified cache.


Specifications

Architecture Armv7-A
Multicore 1-4x Symmetrical Multiprocessing (SMP) within a single processor cluster, and multiple coherent SMP processor clusters through AMBA 4 ACE technology. Compatible with CCI-400 for up to two clusters, CCI-504 for up to four clusters, and a large level 3 cache for optimal performance.
ISA Support

  • Armv7-A
  • Thumb-2
  • TrustZone security technology
  • Neon Advanced SIMD
  • DSP & SIMD extensions
  • VFPv4 Floating point
  • Hardware virtualization support
  • Large Physical Address Extensions (LPAE)
  • Integer Divide
  • Fused MAC
  • Hypervisor debug instructions
Memory Management Unit (MMU)
Armv7 Memory Management Unit
Debug & Trace
CoreSight

Looking for more information on Arm Cortex-A15?

Get in touch to speak with one of our technical experts.

Characteristics

The Cortex-A15 features a highly out-of-order processing engine with a 15 stage pipeline. This enables it to meet the requirements of modern day mobile computing where it must meet two opposite targets; high responsiveness or frame rate for gaming and web surfing, alongside maximizing the battery life to deliver an untethered user experience.

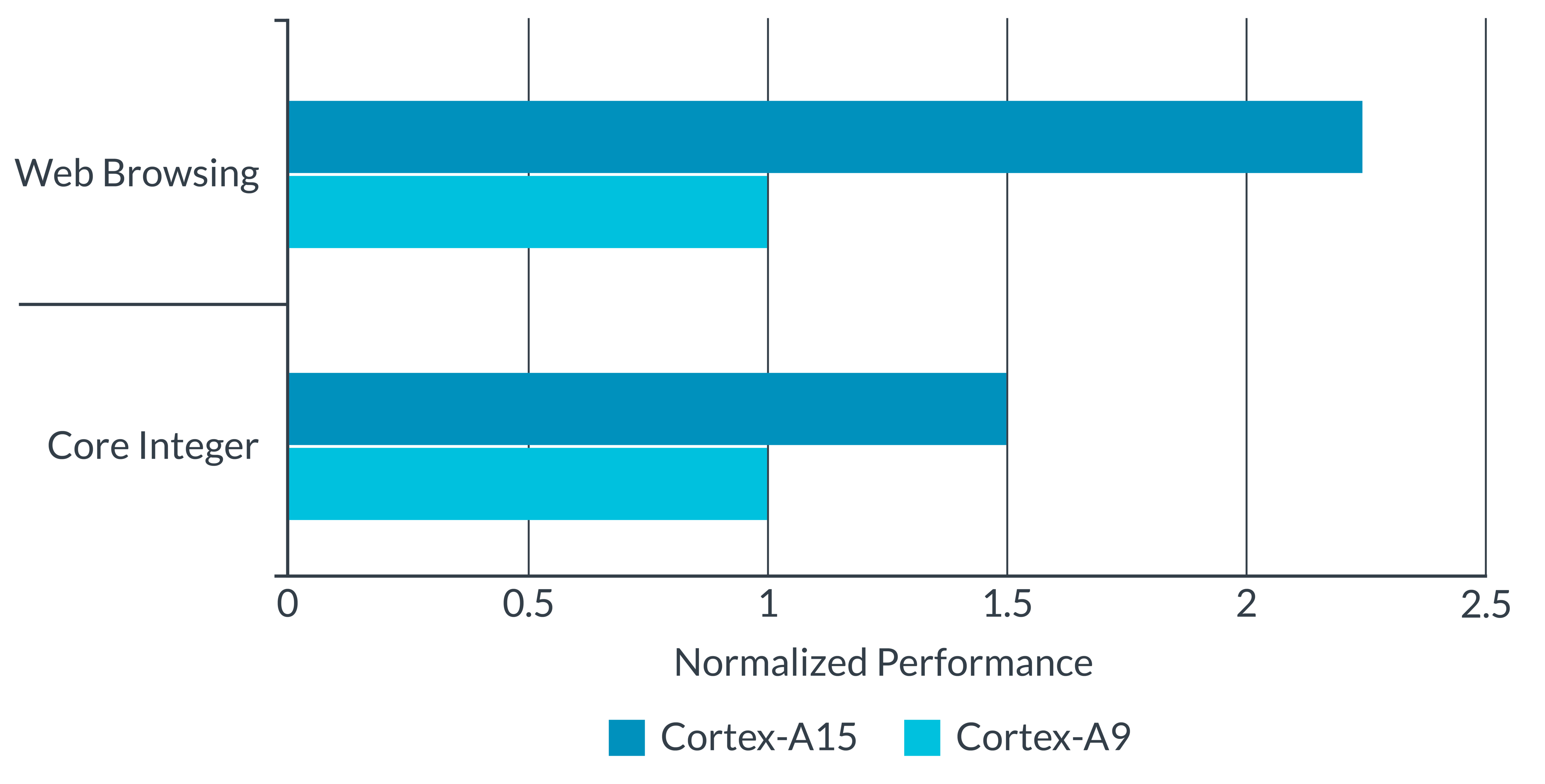

In a single-core configuration, the Cortex-A15 processor can achieve greater performance than the Cortex-A9 processor in key functions. This makes the processor ideal for devices which have rich functionality or need to execute functions at high speeds.

In order for devices to meet both targets simultaneously, Arm has invented big.LITTLE technology. By offering a ‘right core for the right task’ solution, devices can benefit from impressive power savings. Arm’s big.LITTLE technology assigns background and light tasks to the “LITTLE” core and the primary larger tasks to the “big” core. Not only does this allow the larger core to operate more efficiently as it is not trying to continuously context switch to cover the light threads, the consumer benefits from greatly increased battery life alongside top-end performance that can be greater than an individual Cortex-A15 core.

The Cortex-A15 processor can be implemented in a single or multicore configuration and can be paired with the Cortex-A7 to enable big.LITTLE configurations. This means that the processor provides a range of solutions for different use cases.


  • Manual containing technical information.
  • Cortex-A15 Technical Reference Manual

    For system designers, system integrators and programmers who are designing a SoC, the Technical Reference Manual is the go-to resource.

    Read here
  • A program that is running on a desktop.
  • Cortex-A Series Programmer's Guide for Armv7-A

    Common to all Cortex-A series processors, this programmer's guide is useful for assembly and C language application development for Armv7-A.

    Get the guide
  • a ulink, a board, a desktop.
  • Development Tools for Cortex-A

    Arm and our partners provide specialist code generation, debug and analysis tools for software development on Cortex-A series processors, such as DS-5 Development Studio.

    Development Tools

Cortex-A Comparison Table (Armv7-A)

Feature Cortex-A5 Cortex-A7 Cortex-A9 Cortex-A15 Cortex-A17
Instruction set architecture and extensions Armv7-A Armv7-A
LPAE Virtualization
Armv7-A Armv7-A
LPAE Virtualization
Armv7-A
LPAE Virtualization
Pipeline In order In order Out of order Out of order Out of order
Superscalar No Partial Yes Yes Yes
Neon and Floating Point Unit Optional Optional Optional Optional Included
Floating Point Unit only Optional Optional Optional Optional Included
Cryptography Unit No No No No No
Physical Addressing (PA) 32-bit 40-bit 32-bit 40-bit 40-bit
Dual Core Lock-Step (DCLS) No No No No No
L1 I-Cache / D-Cache 4k-64k 8k-64k 16k-64k 32kB/32kB 32k-64k/32k
L2 Cache External L2C-310 Up to 1MB External L2C-310 512kB-4MB 256kB-8MB
L3 Cache NA NA NA NA NA
ECC / Parity   No Yes Yes L2 only
LPAE No Yes No Yes Yes
Bus Interfaces AXI ACE AXI ACE or CHI ACE
ACP Optional No Optional Optional Optional
Peripheral Port     No No Yes
Functional Safety Support
Security TrustZone TrustZone TrustZone TrustZone TrustZone
Interrupt Controller Optional Integrated GIC v1 (MP only) Optional Integrated GIC v2 Internal Integrated GIC v1 (MP only) Optional Integrated GICv2 External GICv2
Generic Timer No Yes Yes Armv8-A Armv8-A

Cortex-A Comparison Table (Armv8-A)

Feature Cortex-A32 Cortex-A34 Cortex-A35 Cortex-A53 Cortex-A55 Cortex-A57 Cortex-A65 Cortex-A65AE Cortex-A72 Cortex-A73 Cortex-A75 Cortex-A76 Cortex-A76AE
Instruction set architecture and extensions Armv8-A AArch32 only Armv8-A AArch64 only Armv8-A Armv8-A Armv8-A, Armv8.1 extensions, Armv8.2 extensions, Cryptography extensions, RAS extensions, Armv8.3 (LDAPR instructions only), Armv8.4 Dot Product Armv8-A Armv8-A, Armv8.1 extensions, Armv8.2 extensions, Cryptography extensions, RAS extensions, Armv8.3 (LDAPR instructions only) Armv8-A, Armv8.1 extensions, Armv8.2 extensions, Cryptography extensions, RAS extensions, Armv8.3 (LDAPR instructions only), Armv8.4 Dot Product Armv8-A Armv8-A Armv8-A, Armv8.1 extensions, Armv8.2 extensions, Cryptography extensions, RAS extensions, Armv8.3 (LDAPR instructions only), Armv8.4 Dot Product Armv8-A, Armv8.1 extensions, Armv8.2 extensions, Cryptography extensions, RAS extensions, Armv8.3 (LDAPR instructions only), Armv8.4 Dot Product Armv8-A, Armv8.1 extensions, Armv8.2 extensions, Cryptography extensions, RAS extensions, Armv8.3 (LDAPR instructions only), Armv8.4 Dot Product
Pipeline In order In order In order In order In order Out of order Out of order Out-of-order Out of order Out of order Out-of-order Out-of-order Out-of-order
Superscalar       Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Neon and Floating Point Unit Optional Optional Optional Optional Optional Included Included Included Included Included Included Included Included
Floating Point Unit only N/A N/A N/A N/A Optional Included Included Included Included Included Included Included Included
Cryptography Unit Optional Optional Optional Optional N/A Optional Optional Optional Optional Optional Optional Optional Optional
Physical Addressing (PA) 40-bit 40-bit 40-bit 40-bit 40-bit 40-bit 44-bit 44-bit 40-bit 40-bit 44-bit 40-bit 40-bit
Dual Core Lock-Step (DCLS) No No No No No No No Yes (in safety-mode) No No No No Yes (in safety-mode)
L1 I-Cache / D-Cache 8k-64k 8k-64k 8k-64k 8k-64k 16kB-64kB 48kB/32kB 16KB to 64KB 16KB to 64KB 48KB/32kB-64kB 32k/32k-64k 64KB 64KB 64KB
L2 Cache 128KB-1MB 128KB-1MB 128KB-1MB 128KB-2MB 64kB-256kB 512kB-2MB 64KB to 256KB 64KB to 256KB 512kB-4MB 256k-8MB 256KB to 512KB 256KB to 512KB 256KB to 512KB
L3 Cache NA NA NA NA Optional
From 256kB to 4MB
NA Optional 512KB to 4MB Optional 512KB to 4MB NA NA Optional 512KB to 4MB Optional 512KB to 4MB Optional 512KB to 4MB
ECC / Parity Yes Yes Yes Yes Yes Yes Yes Yes Yes L2 only Yes Yes Yes
LPAE Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Bus Interfaces ACE or CHI ACE or CHI ACE or CHI ACE or CHI ACE or CHI ACE or CHI ACE or CHI ACE or CHI ACE or CHI ACE ACE or CHI ACE or CHI ACE or CHI
ACP Optional Optional Optional Optional Optional Yes Optional Optional Optional Yes Optional Optional Optional
Peripheral Port         Optional   Optional Optional     Optional Optional Optional
Functional Safety Support Yes Yes Yes Yes Yes Yes   Yes Yes   Yes Yes Yes
Security TrustZone TrustZone TrustZone TrustZone TrustZone TrustZone TrustZone TrustZone TrustZone TrustZone TrustZone TrustZone TrustZone
Interrupt Controller External
GICv3
External
GICv3
External
GICv3
External
GICv3
External
GICv4
External
GICv3
External
GICv4
External
GICv4
External
GICv3
External
GICv3
External
GICv4
External
GICv4
External
GICv4
Generic Timer Armv8-A Armv8-A Armv8-A Armv8-A Armv8-A Armv8-A Armv8-A Armv8-A Armv8-A Armv8-A Armv8-A Armv8-A Armv8-A
